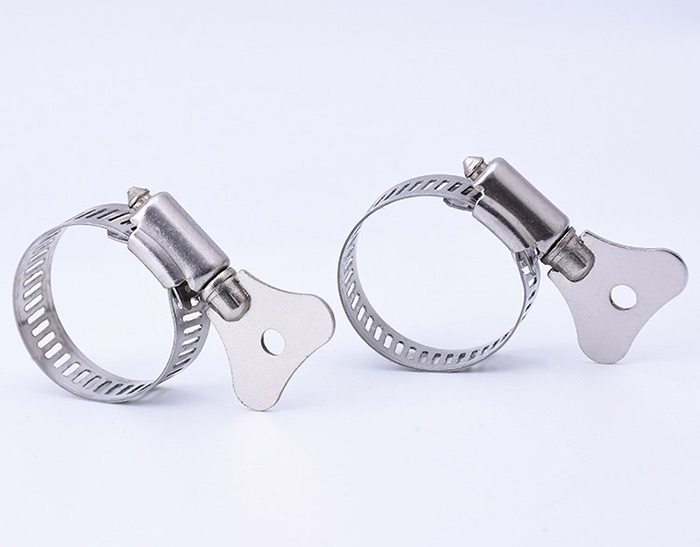

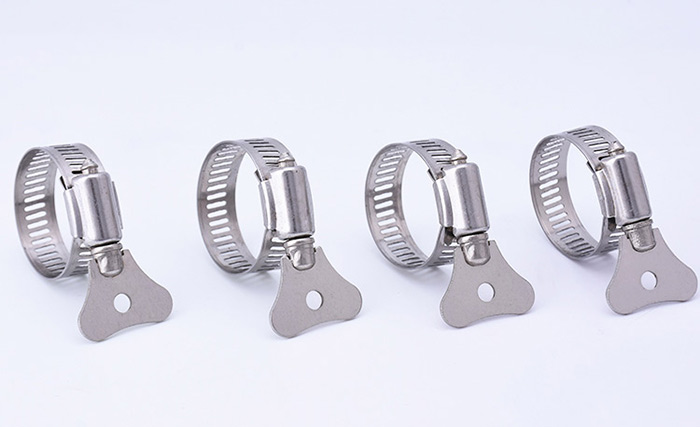

專業生產201鐵手柄不銹鋼喉箍，品種齊全，尺寸范圍如下
１）帶寬8mm厚度0.6mm
2）帶寬12mm,厚度0.6mm
３）帶寬14mm,厚度0.6mm
4）帶寬18.5 ，厚度0.8
調節范圍：10-500，中間任意區間
表面處理：經過拋光處理；光亮無毛刺。
材質201、304、316L
產品規格：從大到小各種規格，按客戶需求.
鐵手柄不銹鋼喉箍規格表：
| 直徑范圍(mm) | 寬度(mm) | 厚度(mm) | 100只凈重（kg） |
| 8-12 | 8 | 0.62 | 0.8 |
| 10-16 | 8 | 0.62 | 0.84 |
| 13-19 | 8 | 0.62 | 0.9 |
| 13-23 | 12 | 0.62 | 1.6 |
| 14-27 | 12 | 0.62 | 1.63 |
| 18-32 | 12 | 0.62 | 1.67 |
| 21-38 | 12 | 0.62 | 1.85 |
| 21-44 | 12 | 0.62 | 1.95 |
| 27-51 | 12 | 0.62 | 2.1 |
| 33-57 | 12 | 0.62 | 2.25 |
| 40-63 | 12 | 0.62 | 2.3 |
| 46-70 | 12 | 0.62 | 2.5 |
| 52-76 | 12 | 0.62 | 2.6 |
| 59-82 | 12 | 0.62 | 2.7 |
| 65-89 | 12 | 0.62 | 2.9 |
| 72-95 | 12 | 0.62 | 3 |
| 78-101 | 12 | 0.62 | 3.1 |
| 84-101 | 12 | 0.62 | 3.2 |
| 91-114 | 12 | 0.62 | 3.4 |
常規尺寸參考（各尺寸可以定制）
| 編號 | 英寸 | 公制尺寸 | 帶寬 |
| 1 | 1/2" | 6-13mm | 8mm |
| 2 | 5/8" | 6-16mm | 8mm |
| 3 | 9/13" | 10-18mm | 8mm |
| 4 | 3/4" | 11-20mm | 8mm |
| 5 | 7/8" | 13-23mm | 8mm |
| 6 | 1" | 16-25mm | 8mm |
| 7 | 1-1/16" | 14-27mm | 8mm |
| 8 | 1-1/4" | 18-32mm | 8mm |
| 9 | 1 1/2" | 21-38mm | 8mm |
| 10 | 7/8" | 13-23mm | 12.7mm |
| 11 | 1" | 16-25mm | 12.7mm |
| 12 | 1-1/16" | 14-27mm | 12.7mm |
| 13 | 1-1/4" | 18-32mm | 12.7mm |
| 14 | 1-1/2" | 21-38mm | 12.7mm |
| 15 | 1-3/4" | 21-44mm | 12.7mm |
| 16 | 2" | 27-51mm | 12.7mm |
| 17 | 2-1/4" | 33-57mm | 12.7mm |
| 18 | 2-1/2" | 40-63mm | 12.7mm |
| 19 | 2-3/4" | 46-70mm | 12.7mm |
| 20 | 3" | 52-76mm | 12.7mm |
| 21 | 3-1/4" | 59-82mm | 12.7mm |
| 22 | 3-1/2" | 65-89mm | 12.7mm |
| 23 | 3-3/4" | 72-95mm | 12.7mm |
| 24 | 4" | 78-101mm | 12.7mm |
| 25 | 4-1/4" | 84-108mm | 12.7mm |
| 26 | 4-1/2" | 91-114mm | 12.7mm |
| 27 | 4-3/4" | 95-120mm | 12.7mm |
| 28 | 5" | 105-127mm | 12.7mm |
| 29 | 5-1/4" | 110-134mm | 12.7mm |
| 30 | 5-1/2" | 118-140mm | 12.7mm |
| 31 | 5-3/4" | 125-146mm | 12.7mm |
| 32 | 6" | 130-152mm | 12.7mm |
| 33 | 6 1/4" | 133-159mm | 12.7mm |
| 34 | 6-1/2" | 143-165mm | 12.7mm |
| 35 | 6 3/4" | 146-171mm | 12.7mm |
| 36 | 7" | 155-178mm | 12.7mm |
| 37 | 8" | 180-204mm | 12.7mm |
內銷產品包裝參數（僅供參考，出口的為2000個/件）
| 規格 | 使用范圍 | 帶寬 | 包裝尺寸 | 箱裝 | 重量 | |
| mm | cm | pcs | Kgs | 每袋裝 | ||
| 3/8" | 6-10mm | 8 | 50*30*17 | 5000 | 26 | 100 |
| 1/2" | 6-13mm | 50*30*18 | 5000 | 26.5 | 100 | |
| 5/8" | 6-16mm | 50*30*20 | 5000 | 27 | 100 | |
| 3/4" | 11-20mm | 50*30*21 | 5000 | 27.5 | 100 | |
| 7/8" | 13-23mm | 50*30*23 | 5000 | 28 | 100 | |
| 1" | 16-25mm | 50*30*25 | 5000 | 28.5 | 100 | |
| 1-1/16" | 14-27mm | 50*25*20 | 2500 | 16.5 | 100 | |
| 1-1/4" | 18-32mm | 50*25*25 | 2500 | 18 | 100 |
| 規格 | 公制范圍 | 帶寬 | 外箱尺寸 | 單箱個數 | 毛重/箱 | 一袋個數 |
| 3/4" | 11-20mm | 12.7 | 50x30x16 | 1000 | 17 | 100 |
| 7/8" | 13-23mm | 50x30x16 | 1000 | 18 | 100 | |
| 1-1/16" | 14-27mm | 50x30x18 | 1000 | 19 | 100 | |
| 1-1/4" | 18-32mm | 50x32x21 | 1000 | 20 | 100 | |
| 1-1/2" | 21-38mm | 50x30x24 | 1000 | 21 | 100 | |
| 1-3/4" | 21-44mm | 50*30*26 | 1000 | 22 | 100 | |
| 2" | 27-51mm | 50*30*28 | 1000 | 23 | 100 | |
| 2-1/4" | 33-57mm | 50*30*30 | 1000 | 24 | 100 | |
| 2-1/2" | 40-63mm | 50*30*32 | 1000 | 25 | 100 | |
| 2-3/4" | 46-70mm | 50*30*34 | 1000 | 26 | 100 | |
| 3" | 52-76mm | 50x30x34 | 500 | 14 | 50 | |
| 3-1/4" | 59-82mm | 50x30x37 | 500 | 14.5 | 50 | |
| 3-1/2" | 65-89mm | 50x30x41 | 500 | 15 | 50 | |
| 3-3/4" | 72-95mm | 50x30x44 | 500 | 15.5 | 50 | |
| 4" | 78-101mm | 50x30x47 | 500 | 16 | 50 | |
| 4-1/4" | 84-108mm | 50x30x50 | 500 | 16.5 | 50 | |
| 4-1/2" | 91-114mm | 50x30x26 | 250 | 9.5 | 50 | |
| 4-3/4" | 95-120mm | 50x30x30 | 250 | 10 | 50 | |
| 5" | 105-127mm | 50x30x34 | 250 | 10.5 | 50 | |
| 5-1/4" | 110-134mm | 50x30x37 | 250 | 11 | 50 | |
| 5-1/2" | 118-140mm | 50x30x40 | 250 | 11.5 | 50 | |
| 5-3/4" | 125-146mm | 50x30x43 | 250 | 12 | 50 | |
| 6" | 130-152mm | 50x30x46 | 250 | 12.5 | 25 | |
| 6 1/4" | 133-159mm | 50x30x48 | 250 | 13 | 25 | |
| 6-1/2" | 143-165mm | 50x30x50 | 250 | 13.5 | 25 | |
| 6 3/4" | 146-171mm | 50x30x54 | 250 | 14 | 25 | |
| 7" | 155-178mm | 50x30x56 | 250 | 14.5 |
25 |
